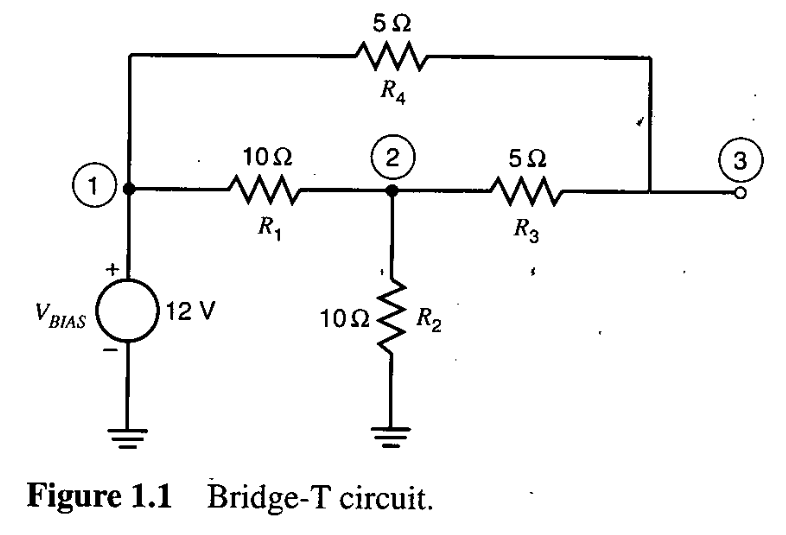

BRIDGE-T CIRCUIT
*
VBIAS 1 0 12
R1 1 2 10
R2 2 0 10
R3 2 3 5
R4 1 3 5
*
.OP
.END
1
2
3
4
5
6
7
ngspice
source bridge.ckt
listing
op
print v(1)
print all
quit
by default the current flowing from the positive terminal to negative terminal is positive current.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
SPICE title card
x1 1 2 pvcell
x2 2 0 pvcell
x3 1 3 pvcell
x4 3 0 pvcell
iload 1 0
.subckt pvcell 1 3
rs 1 2 0.01
isc 3 2 1.5
d1 2 3 pnjunc
rp 2 3 5
.model pnjunc d is=1e-9 vj=0.65
.ends pvcell
.dc iload 0 3 0.01
.control
run
plot v(1)
.endc
.end
